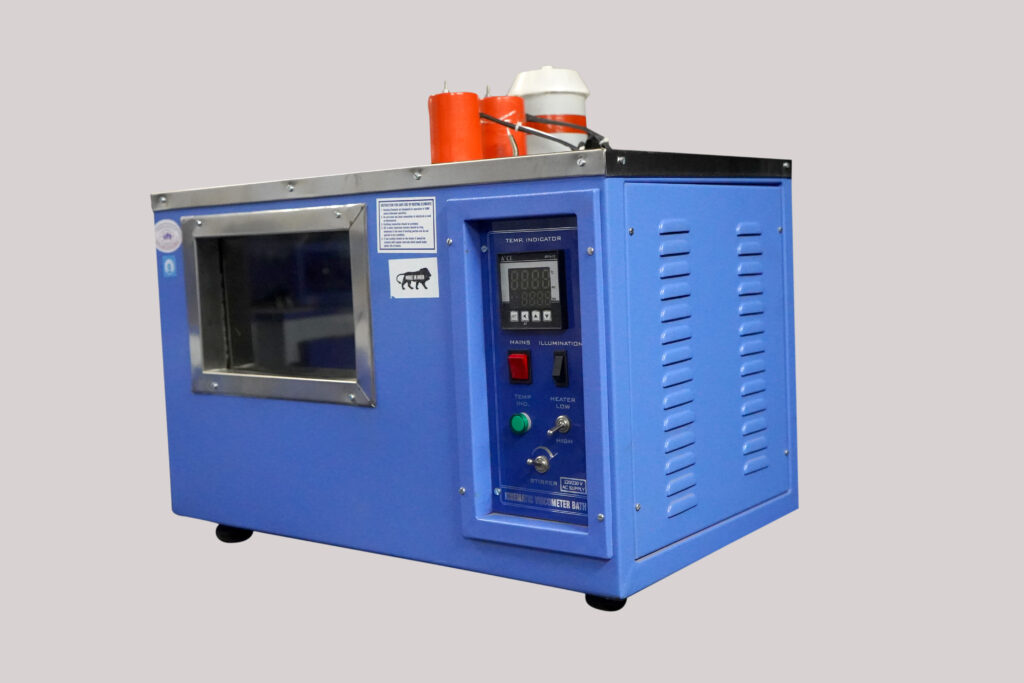

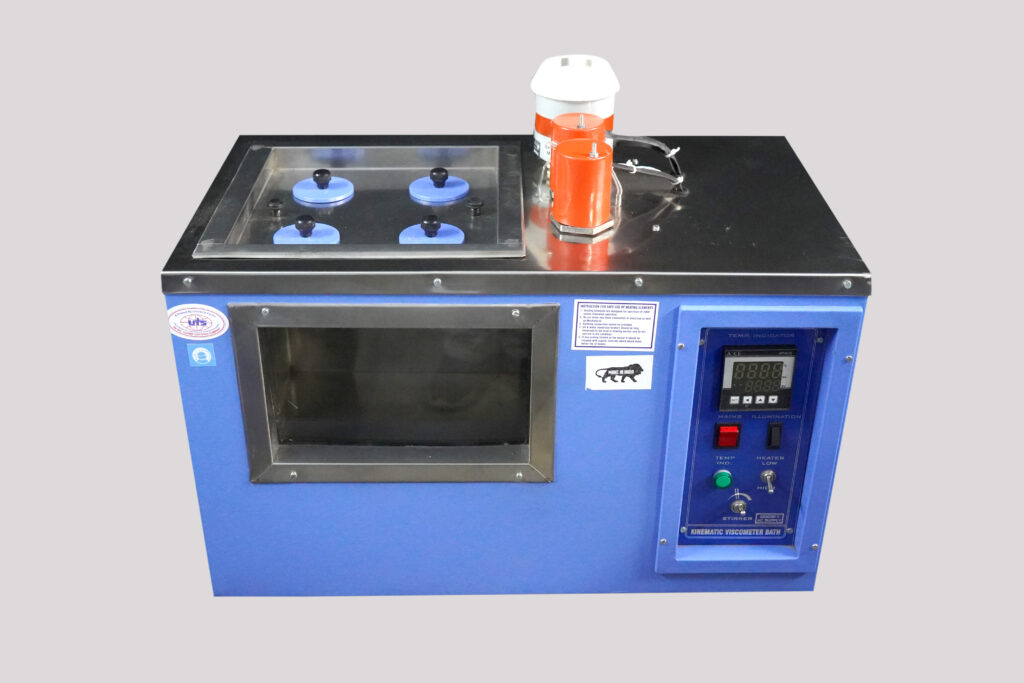

- Precise Constant Temp. Viscosity Bath Useful for estimation of Viscosity of Petroleum & Its Product
- Better mineral/Glasswool Insulation to avoid Heat loss during Test
- Silent Circulation Pump/ FHP electronic motor of S. Steel shaft for uniform liquid circulation inside the Bath chamber
- Polish 304 grade steel sheet corrosion resistant long life operation
- Kanthal A-1, tubular immersion heater fitted on the top of the Bath for better accuracy
- Two side toughened glass window provided for visibility of object inside the bath.
- Bath is having 4/6 Holes for Holding viscometer tube of different sizes
- Fully Featured with Digital Temp. Controller Cum indicator or Microprocessor based PID Temp. Controller Cum Indicator.
- Provisions for illumination are provided in the Viscometer Bath
Applications :
Useful for Viscosity of Petroleum & Its Products for Industries/Research Department/calibration etc.
Specification:
| Models | UTS 1.13C | UTS 1.13A |
| Capacity (Litre) | 15-17 Litres | 25 Litres |
| Interior (mm) | 300 x 300 x 225 mm | 300 x 300 x 300 mm |
| Heater “W” Wattage | 1 KW. X 2 = 2 KW. | 1 KW. X 2 = 2 KW. |
Dimensions are expressed in (length x Height x Depth)
Technical Parameters
Temperature Range : Ambient to 100°C.
Temperature Stability : +1°C or better.
Housing Material : MS/CRC Sheet duly powder coated
Interior : Polish S. Steel 304 grade sheet
Insulation : Glass/Mineral wool
Power Consumption : 220/230V AC +10% 50Hz single phase supply

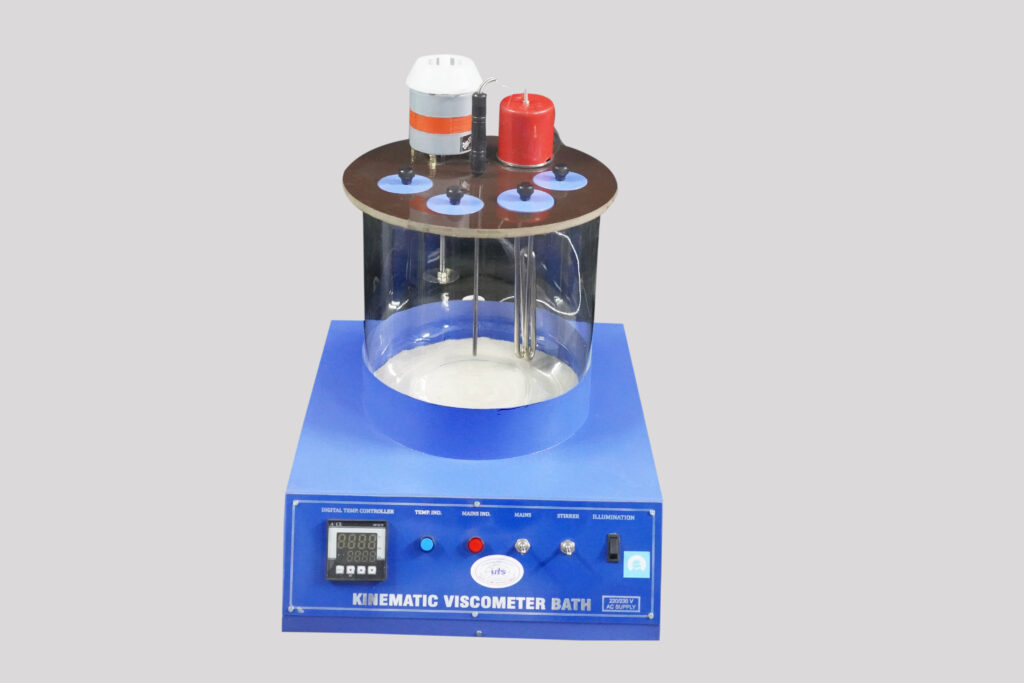

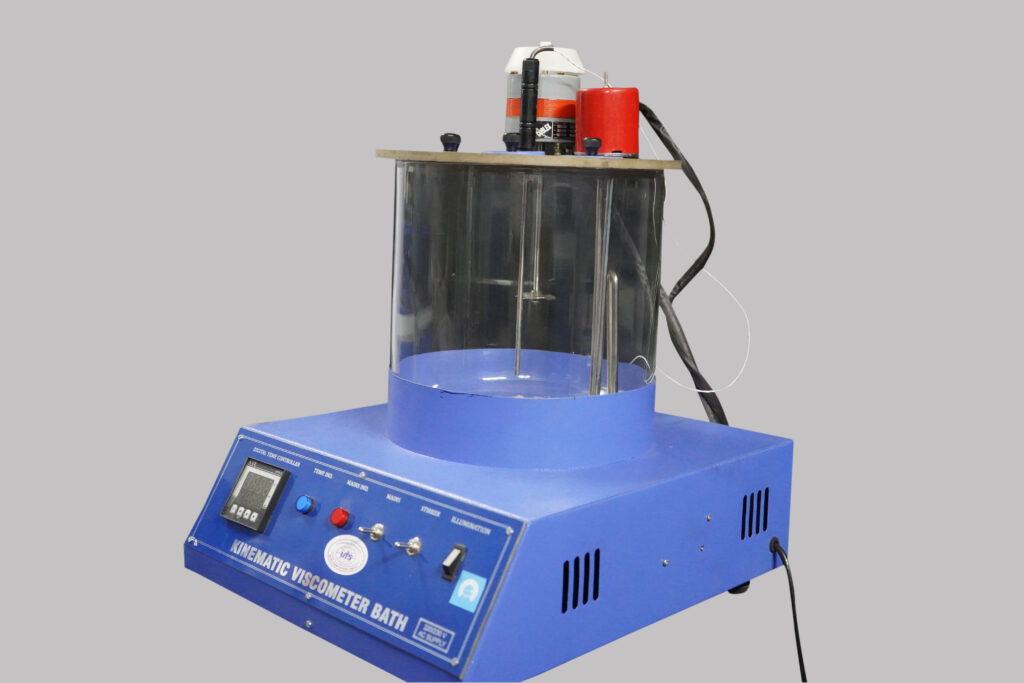

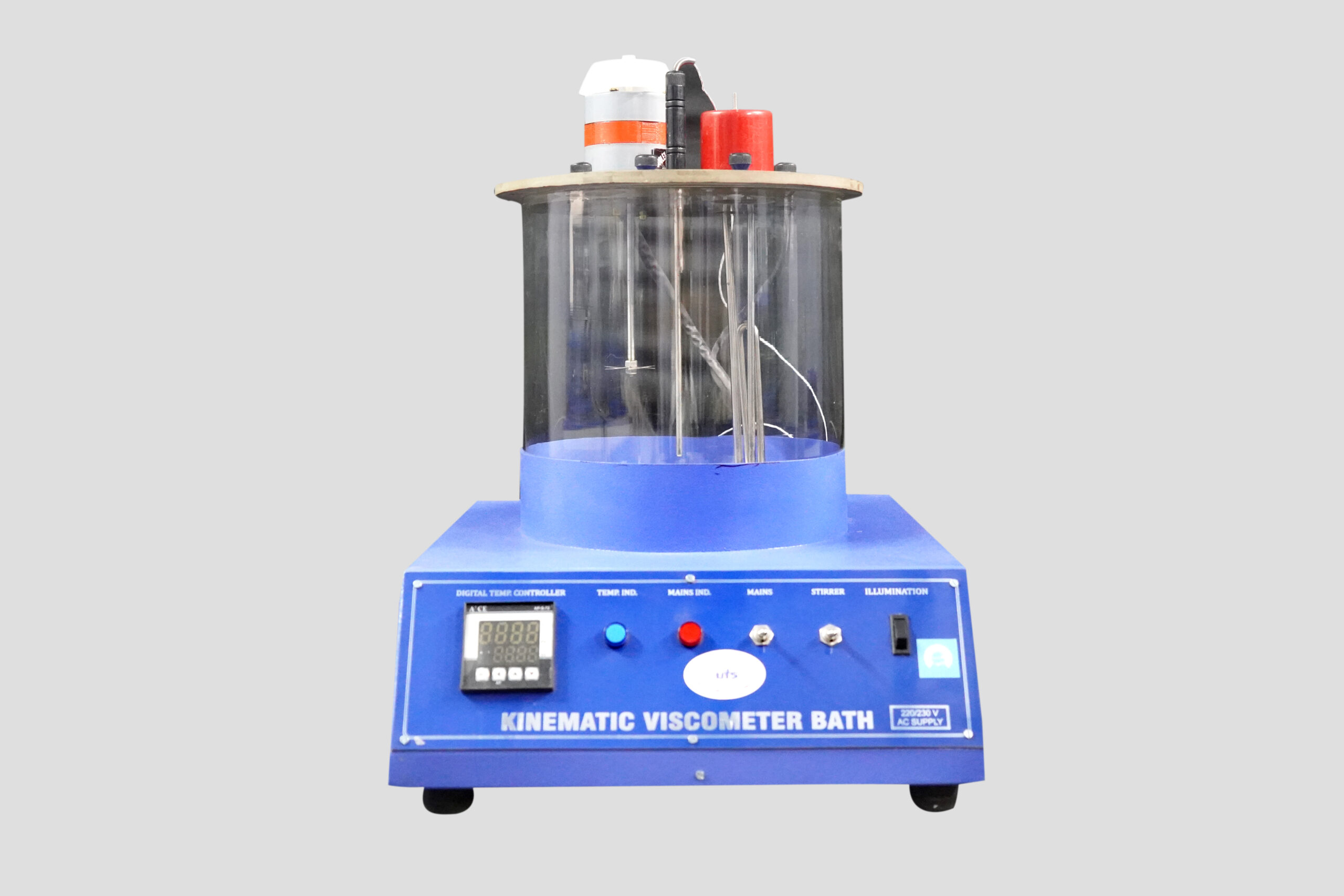

- Round Glass Borosil Jar having 10 ltr/20 ltr. approx. Capacity
- With Pump Stirrer & Immersion heater fitted on the top for better durability
- having provision for 3/4 tube with tube holder.
CONTROL PANEL: HAVING
1) PID Temp. Controller cum Indicator.
2) Temp. Indicator.
3) Mains
4) Pump Stirrer.
5) Illumination.
TEMP RANGE: Amb. to 135°C.
WORKING RANGE: upto 130°C ± 1°C
CONTROL PANEL: MS Sheet Powder Coated having provision to hold 10 Ltr. to 20 Ltr. (approx.) Borosil glass jar duly insulated.
RATING: 1.5 KW to work on 220/230 Volts AC supply
Models Size Capacity (Litre)
UTS1.138 3 TubeModel 10 Litres
UTS1.13C 4 TubeModel 10-17 Litres
PS: All types of U-tubes are available (on Customer’s request)
