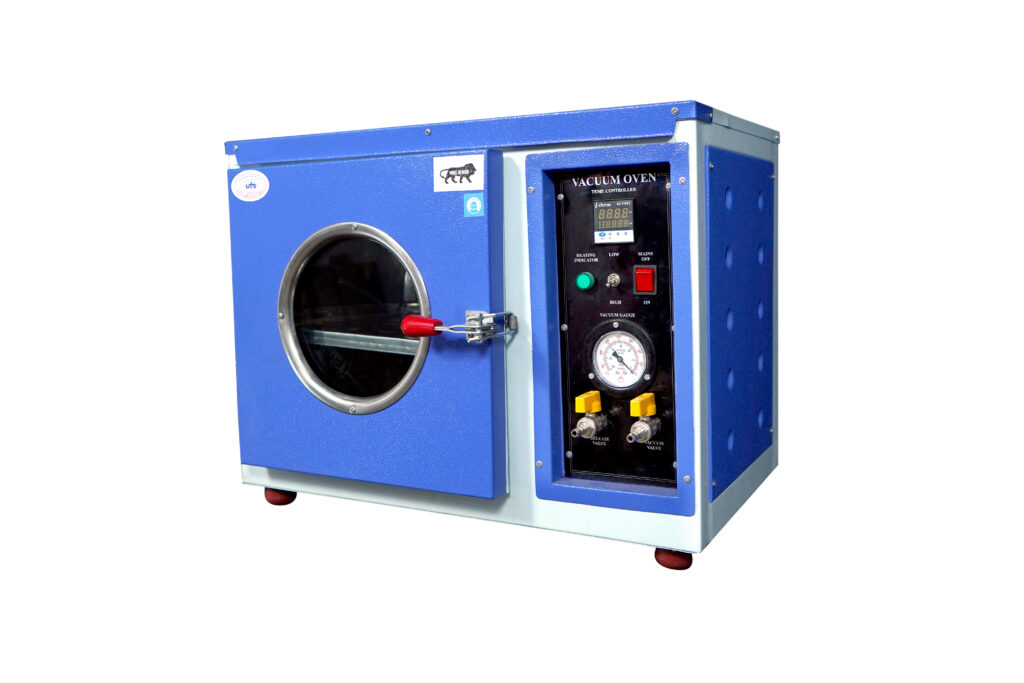

Introduction: Vacuum Ovens have gained wide acceptance for its remarkable performance in various Laboratories, Research & Development Centers, Industrial Houses, Medical Centers, Hospital Educational Institutes, Central & State Government Departments
Temperature Range :- +5°C above ambient to 150°C
Temperature Accuracy :- +2°C
Working Chamber Dimension:
| Dia | X | Dept |
| 250 mm | X | 250mm |
| 300 mm | X | 300mm |
| 300mm | X | 500mm |
Interior Chamber Volume :-16-40 Ltrs.
Voltage ;-220/230 Volts, Single Phase, 50Hz AC Supply.
Salient Features:
- Vacuum Oven- Double Walled
- Inside Cylinder is made of thick Stainless Steel 304 Quality.
- Outside MS Sheet pre-greased, pre treated for rust proofing and powder
- High Grade Minera Glass wool Insulation the walls to avoid energy loss
- Temperature range from 5°C above room temp. To 150°C with ± 2°C accuracy.
- Precise Vacuum Control to 28(70.2cm)Hg displayed on analog gauge. Temperature controlled by a sensitive thermostat with a knob & reference dial/solid state/micro processor
- Based temperature controller cum indicator.
- Vacuum Chamber is wrapped with a set of high quality heaters for quick and uniform heating.
- Door has a thick tempered toughened glass window, perfectly sealed with neoprene rubber gasket for
observation without disturbing thermal condition. - Specially designed pre-treated MS door with inside stainless steel lining has a screwed door closure.
- Proper door alignment to ensure excellent vacuum performance and operator’s safety
Positive screw to - Tighten the lid to obtain perfect seal. One removable stainless steel shelf.
- Fitted with diaphragm valves and a vacuum gauge.
- Designed to be operated at any pressure less than atmospheric pressure.
- Two neon lamps indicating control cycles as well as mains and heater switch
