- Unique design of outer MS body having powder coated with gap of cast Iron top from the body.
- Kanthal A-1 superior quality coil shaped heater duly embedded in the cast iron plate to avoid heat loss.
- Having Cera Blanket Insulation.
- All electrical connection are fire proof having sleeve for Heat/ Temperature Protection.
- Temp. Range is from Ambient to 300°C.
- Temp Controlled by sunvic Energy Regulator having marked 0-100, at minimum position it release minimum energy & at max. Position it release max energy.

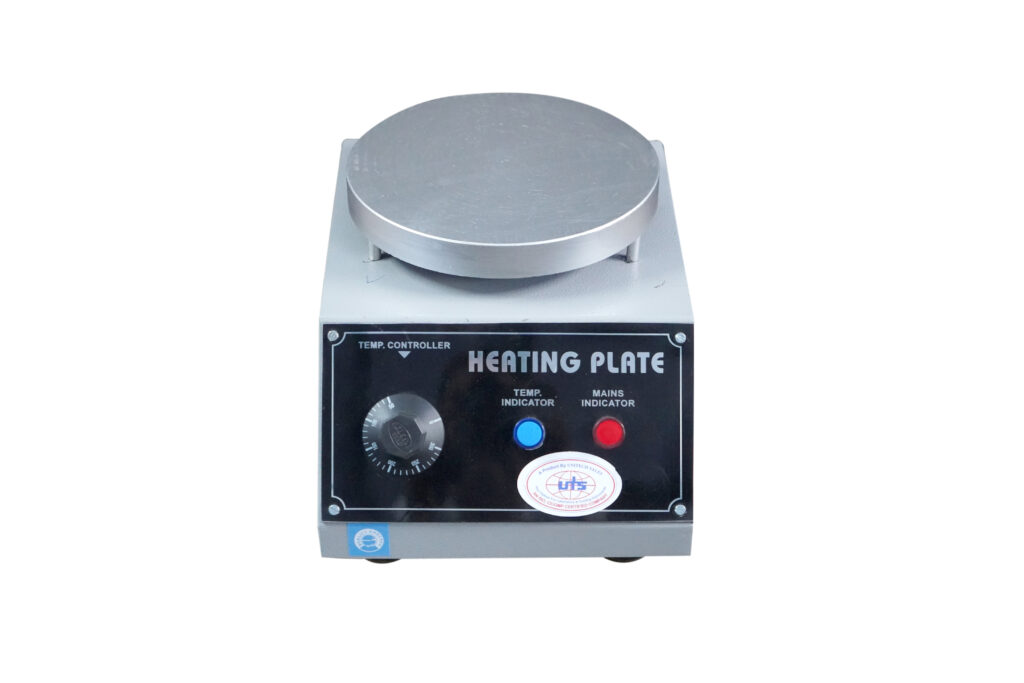

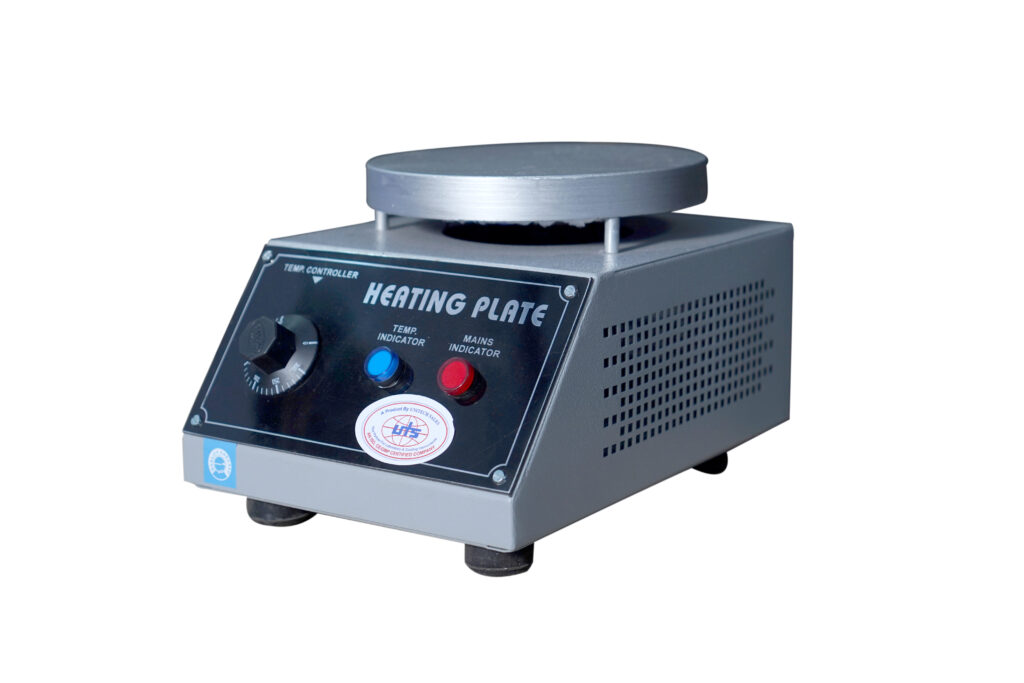

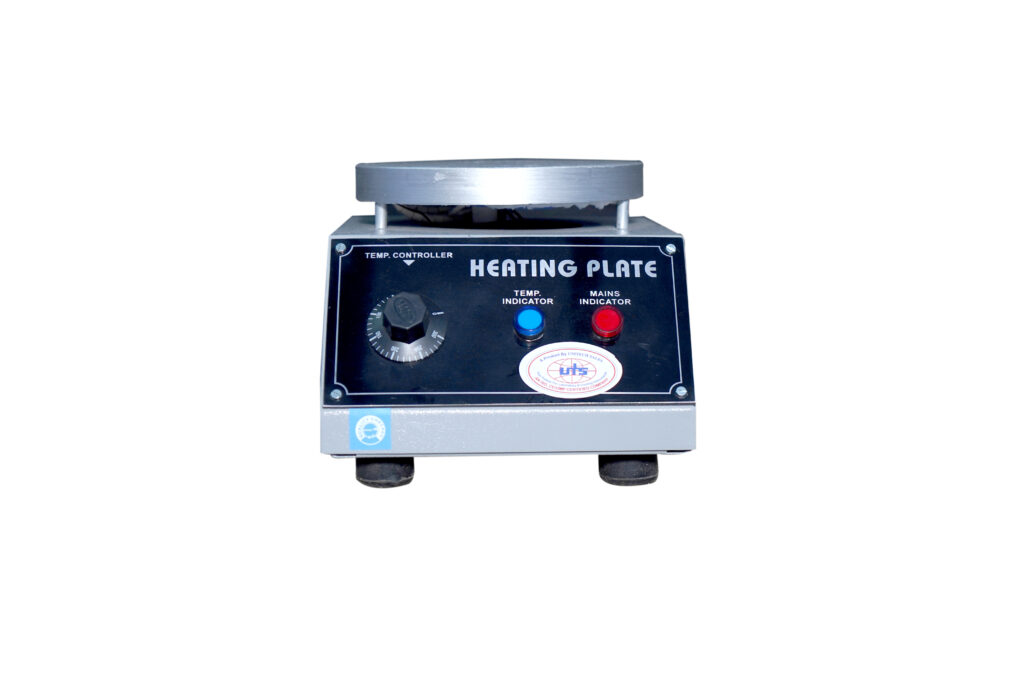

- Cast Iron top is having 7.5″ Diameter having heat resistant paint. Optional : Can be supplied with Thermostate control in place of ER.
Applications :
Laboratory use: for educational Institute Hospital, Research Lab. Bio Tech Lab. & Pharmaceutical
Specification:
| Models | UTS:1.27 | UTS:1.27A | UTS:1.27B | UTS:1.27C | UTS:1.27D |

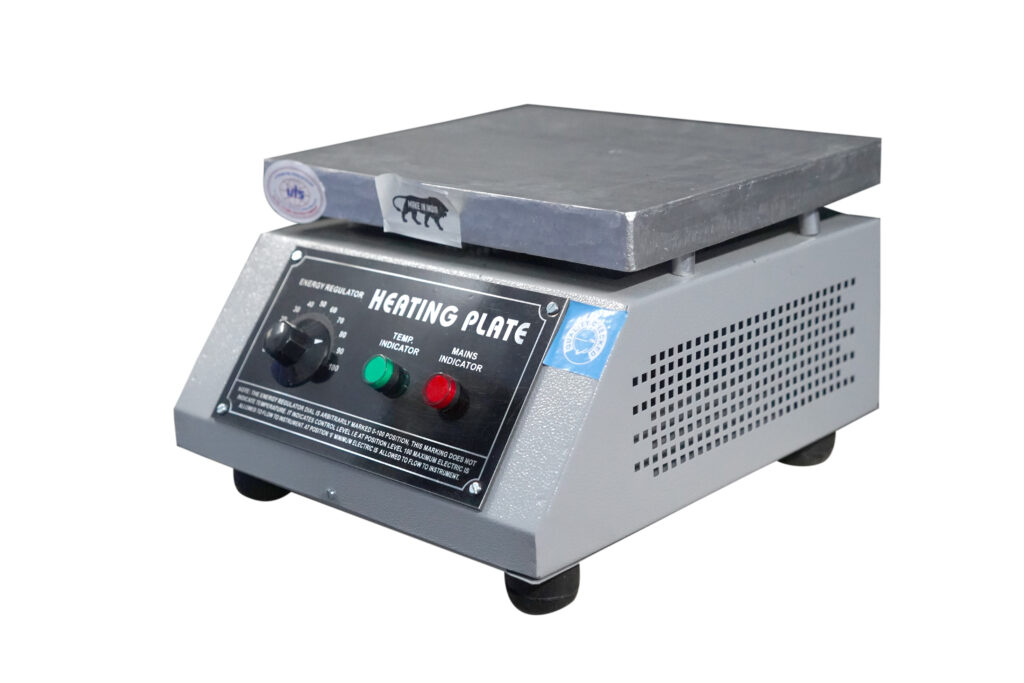

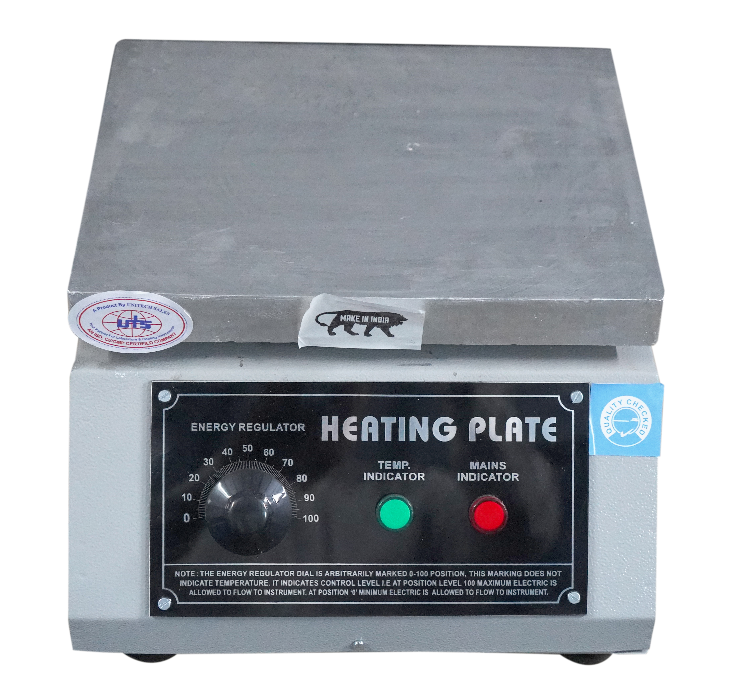

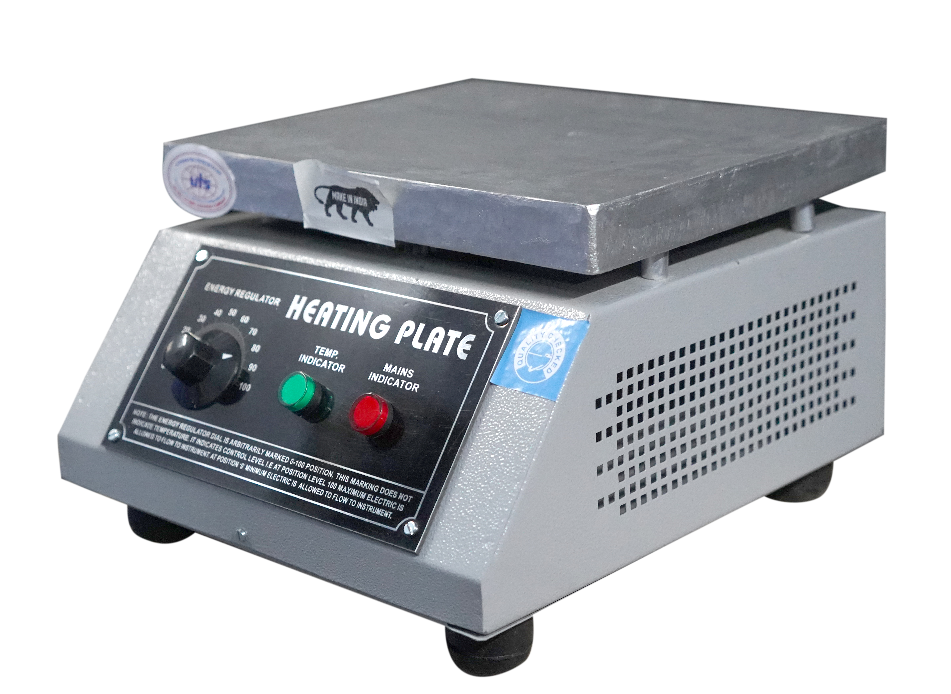

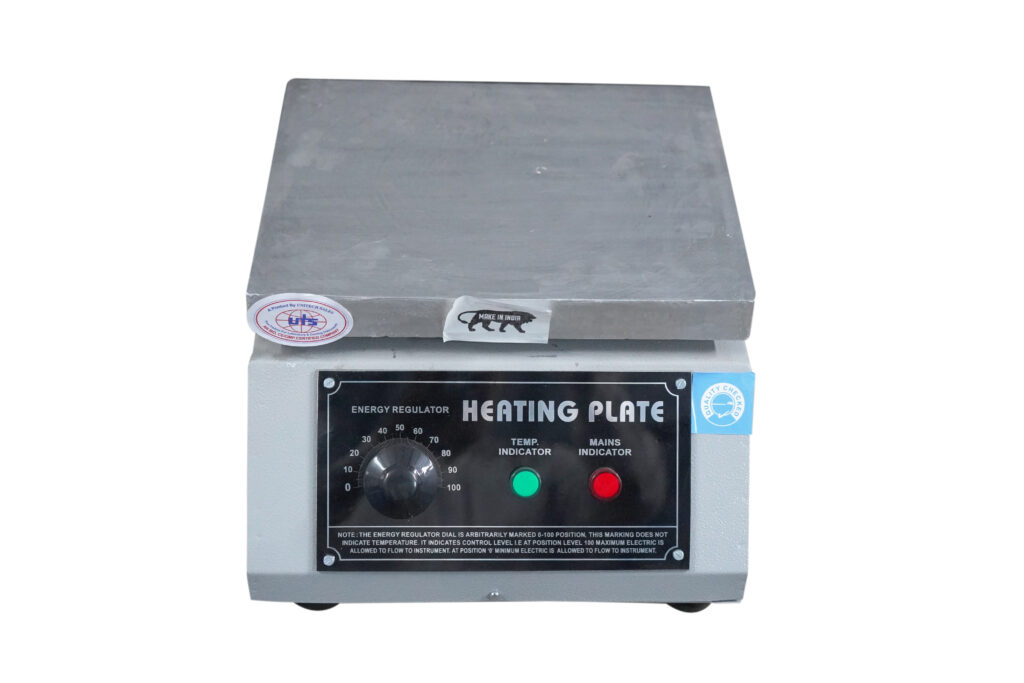

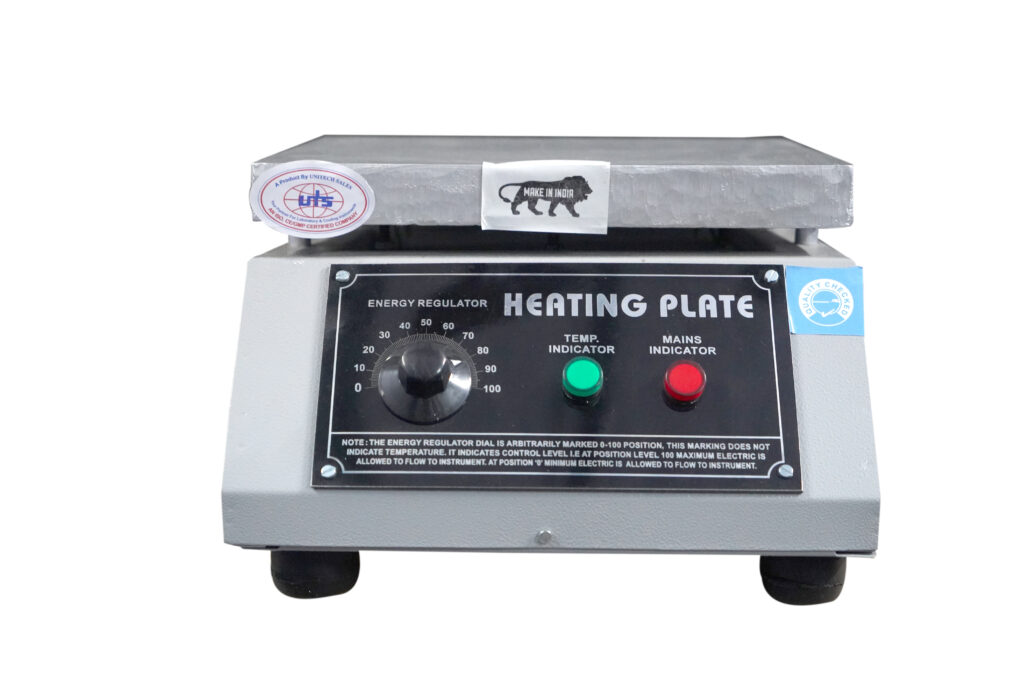

| Size | 7.5″Dia | 12″x10″x6″ Rectangular |
16″x10″x6″ Rectangular |
18″x12″x6″ Rectangular |
24″x18″x6″ Rectangular |
| Heater “W” | 1.5 KW. | 1.5 KW. | 1.5 KW. | 2.0 KW. | 3.0 KW. |
Technical Parameters
Control Panel : Energy Regulator, Temp. Indicator & Load Indicator.
Housing Material : CRC/MS Sheet duly powder coated.
Optional : Thermostate in place of ER.
Duty Cycle : Continuous.
Power Consumption : 220/230V AC Supply 50Hz single Phase.
Optional : Digital Temp. Controller Cum Indicator.
