- Small to large capacity Suitable for 6, 12 & 24 Moulds
- Heater Immersion type high grade quality having silent zone on the top S S 304 grade fitted with kanthal A-1 heater for years of life & easy of use.
- Drain plug Model of Brass duly nickled having handle for outlet of water is fitted on the back side.
- Full feature with Digital Temp. Controller Cum Indicator or PID (microprocessor Based)
- Stability of Temp. ± 1°C or better (in PID ± 0.5°C or better)
- Better mineral/Glasswool insulation
- Best quality SS 304 grade Inside Tank duly argon welded (leak proof)
- Heavy duty insulated gate / Lid with handle for lifting, fitted with SS hinges
- SS perforated heavy gauge 304 grade diffuser plate(optional). Angle Iron Frame at bottom with castor wheel is provided for easy Movement
- Tullu Pump for Circulation .
Applications:
For curing of Moulds Specimen.
Models/Cap. Available
Capacity :6 Moulds
Capacity : 12 Moulds
Capacity : 24 Moulds
Technical Parameters
Control Panel: Temp. Controller, mains indicator & Temp. Indicator/Tullu Pump
Temp. Range: Ambient to 100°C
Stability: ±1°C or better (in PID ± 0.5°C or better)
Housing Material: CRC/MS sheet duly powder coated with angle frame.
Insulation: Glass / mineral wool.
Power Supply: 220/230V. AC Single Phase

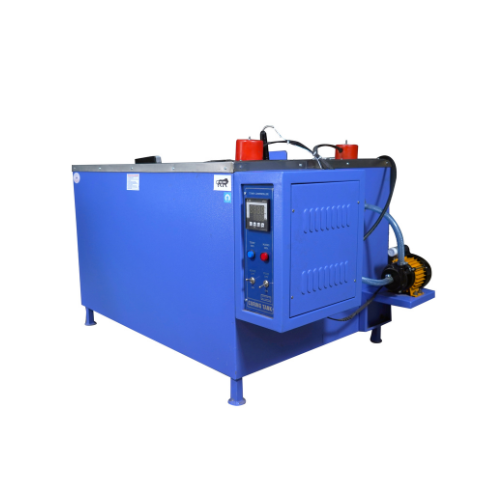

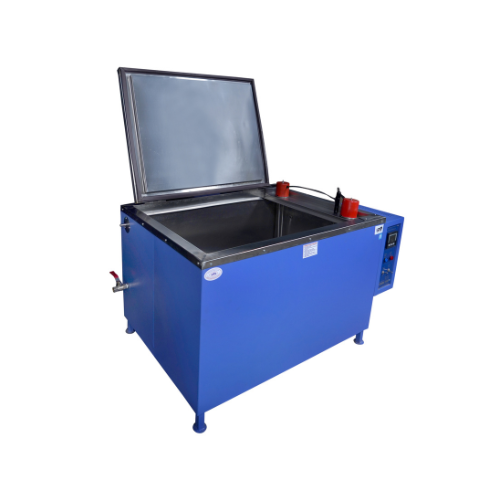

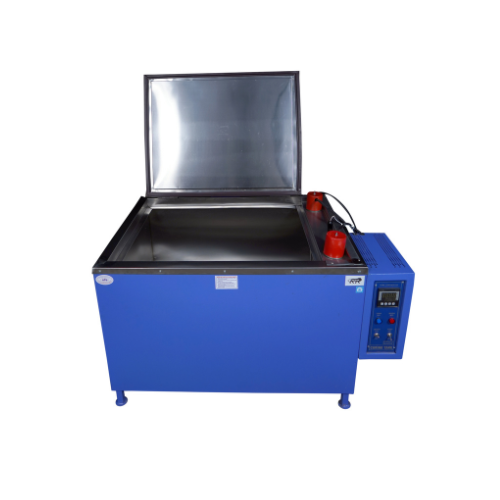

PS: for Complete Mould Accelerated Curing Tank (Price on request)
